艾塞那肽的雜質和降解產物。
編號:145049
CAS號:1678417-24-7
單字母:H2N-HGEGTFTSDLSKQMEEEAVRLFIEWLKDGGPSSGAPPPS-CONH2
編號: | 145049 |
中文名稱: | 艾塞那肽(Asp²?)-Exenatide |
英文名: | (Asp²?)-Exendin-4 |
CAS號: | 1678417-24-7 |
單字母: | H2N-HGEGTFTSDLSKQMEEEAVRLFIEWLKDGGPSSGAPPPS-CONH2 |
三字母: | H2N N端氨基 -His組氨酸 -Gly甘氨酸 -Glu谷氨酸 -Gly甘氨酸 -Thr蘇氨酸 -Phe苯丙氨酸 -Thr蘇氨酸 -Ser絲氨酸 -Asp天冬氨酸 -Leu亮氨酸 -Ser絲氨酸 -Lys賴氨酸 -Gln谷氨酰胺 -Met甲硫氨酸 -Glu谷氨酸 -Glu谷氨酸 -Glu谷氨酸 -Ala丙氨酸 -Val纈氨酸 -Arg精氨酸 -Leu亮氨酸 -Phe苯丙氨酸 -Ile異亮氨酸 -Glu谷氨酸 -Trp色氨酸 -Leu亮氨酸 -Lys賴氨酸 -Asp天冬氨酸 -Gly甘氨酸 -Gly甘氨酸 -Pro脯氨酸 -Ser絲氨酸 -Ser絲氨酸 -Gly甘氨酸 -Ala丙氨酸 -Pro脯氨酸 -Pro脯氨酸 -Pro脯氨酸 -Ser絲氨酸 -CONH2C端酰胺化 |
氨基酸個數: | 39 |
分子式: | C184H281N49O61S1 |
平均分子量: | 4187.56 |
精確分子量: | 4185.01 |
等電點(PI): | 4.45 |
pH=7.0時的凈電荷數: | -2.78 |
平均親水性: | 0.36666666666667 |
疏水性值: | -0.69 |
消光系數: | 5500 |
來源: | 人工化學合成,僅限科學研究使用,不得用于人體。 |
儲存條件: | 負80℃至負20℃ |
標簽: | 促胰島素分泌肽(Exendins) |
Impurity and degradation product of exenatide.
Definition
The exendins are peptides that are found in the salivary secretions of the Gila monster and the Mexican Bearded Lizard, reptiles that are endogenous to Arizona and Northern Mexico. Exendin-3 is present in the salivary secretions of Heloderma horridum (Mexican Beaded Lizard), and exendin-4 is present in the salivary secretions of Heloderm suspectum (Gila monster) 1.
Related Peptides
The GLP-1 structurally related peptides exendin-4 and exendin (9-39) amide were found to act, in rat liver and skeletal muscle, as agonist and antagonist, respectively, of the GLP-1 (7-36) amide effects on glucose metabolism 2.
Discovery
In 1982, it was observed that the crude venom of the Gila monster Heloderma suspectum was a potent pancreatic secretagogue. Purification and sequencing of the active factors mediating this effect led to the discovery of the peptides helodermin and exendin-4 3.
Structural Characteristics
The exendins have some sequence similarity to several members of the glucagon-like peptide family, with the highest homology, 53%, being to GLP-1[7-36] NH2 2. An amino acid sequencing assay for peptides containing an amino-terminal histidine residue (His1) was used to isolate a 39-amino acid peptide, exendin-4, from H. suspectum venom. Exendin-4 differs from exendin-3 by two amino acid substitutions, Gly2-Glu3 in place of Ser2-Asp3, but is otherwise identical. The structural differences make exendin-4 distinct from exendin-3 in its bioactivity 4.
Mode of Action
In normal rats, exendin-4, like GLP-1 and insulin, enhanced glucose uptake. This effect, which is mediated to a certain extent by some kinases (PI3K/ PKB, p70s6k and MAPKs), may be caused by the peptide acting, at least in part, through the muscle GLP-1 receptors. Exendin-9 also stimulated the same kinases, except for PKB, but failed to modify basal glucose uptake 5. Pharmacological studies have led to reports that exendin-4 can act at GLP-1 receptors in vitro on certain insulin-secreting cells, at dispersed acinar cells from guinea pig pancreas, and at parietal cells from stomach; the peptide is also reported to stimulate somatostatin release and inhibit gastrin release in isolated stomach.
Exendin-3 and exendin-4 were reportedly found to stimulate cAMP production in, and amylase release from, pancreatic acinar cells.1
Functions
Like GLP-1 (7-36) amide, exendin-4 increased glycogen synthase activity and glucose incorporation into glycogen in both tissues and also stimulated exogenous D -glucose utilization and oxidation in muscle. These effects of GLP-1(7-36) amide and exendin-4 were inhibited by exendin (9-39) amide 2. Novel modified exendins and exendin agonists having an exendin or exendin agonist linked to one or more polyethylene glycol polymers, and related products and methods are useful, for example, in the treatment of diabetes, including Type 1, Type 2, and gestational diabetes, in the treatment of disorders which would be benefited by agents which modulate plasma glucose levels or suppress glucagon secretion, and in the treatment of disorders which would be benefited by the administration of agents useful in modulating the rate of gastric emptying or food intake, including obesity, eating disorders, insulin-resistance syndrome, and triglyceride levels, and to treat subjects suffering from dyslipidemia. The methods are also useful for lowering plasma lipid levels, reducing cardiac risk, reducing appetite, and reducing the weight of subjects.1
References
1. Eng J, Andrews PC, Kleinman WA, Singh L, Raufman JP (1990). Purification and structure of exendin-3, a new pancreatic secretagogue isolated from Heloderma horridum venom. J Biol Chem., 265(33):20259-20262
2. Alcántara AI, Morales M, Delgado E, López-Delgado MI, Clemente F, Luque MA, Malaisse WJ, Valverde I, Villanueva-Peñacarrillo ML (1997). Exendin-4 Agonist and Exendin(9-39)amide Antagonist of the GLP-1(7-36)amide Effects in Liver and Muscle. Archives of Biochemistry and Biophysics., 341(1):1-7.
3. Pohl M, Wank SA (1998). Molecular cloning of the helodermin and exendin-4 cDNAs in the lizard. Relationship to vasoactive intestinal polypeptide/pituitary adenylate cyclase activating polypeptide and glucagon-like peptide 1 and evidence against the existence of mammalian homologues. J Biol Chem., 273(16):9778-9784.
4. Eng J, Kleinman WA, Singh L, Singh G, Raufman JP (1992). Isolation and characterization of exendin-4, an exendin-3 analogue, from Heloderma suspectum venom. Further evidence for an exendin receptor on dispersed acini from guinea pig pancreas. J Biol Chem., 267(11):7402-7405.
5. Sancho V, Trigo MV, González N, Valverde I, Malaisse WJ, Villanueva-Peñacarrillo ML (2005). Effects of glucagon-like peptide-1 and exendins on kinase activity, glucose transport and lipid metabolism in adipocytes from normal and type-2 diabetic rats. J Mol Endocrinol., 35(1):27-38.
DOI | 名稱 | |
---|---|---|
10.1152/ajpendo.00030.2002 | The long-acting GLP-1 derivative NN2211 ameliorates glycemia and increases beta-cell mass in diabetic mice | 下載 |
10.1016/S0165-6147(03)00160-3 | The glucagon-like peptides: a double-edged therapeutic sword? | 下載 |
10.1038/sj.bjp.0705453 | A model for receptor-peptide binding at the glucagon-like peptide-1 (GLP-1) receptor through the analysis of truncated ligands and receptors | 下載 |
10.1016/s0014-5793(03)01043-3 | The positive charge at Lys-288 of the glucagon-like peptide-1 (GLP-1) receptor is important for binding the N-terminus of peptide agonists | 下載 |
10.1007/s00125-004-1327-5 | Glucagon-like peptide-1 regulates proliferation and apoptosis via activation of protein kinase B in pancreatic INS-1 beta cells | 下載 |
10.1007/s00125-005-1787-2 | Glucagon-like peptide-1 protects beta cells from cytokine-induced apoptosis and necrosis: role of protein kinase B | 下載 |
10.1172/JCI25764 | Brain glucagon-like peptide-1 increases insulin secretion and muscle insulin resistance to favor hepatic glycogen storage | 下載 |
10.1152/ajpgi.00453.2006 | Exendin-4, but not dipeptidyl peptidase IV inhibition, increases small intestinal mass in GK rats | 下載 |
10.1002/jnr.21483 | Peptide hormone exendin-4 stimulates subventricular zone neurogenesis in the adult rodent brain and induces recovery in an animal model of Parkinson's disease | 下載 |
10.1016/j.regpep.2007.10.001 | Protective effects of GLP-1 analogues exendin-4 and GLP-1(9-36) amide against ischemia-reperfusion injury in rat heart | 下載 |
10.1038/bjp.2008.75 | Autonomic nervous system-dependent and -independent cardiovascular effects of exendin-4 infusion in conscious rats | 下載 |
10.1016/j.peptides.2008.04.007 | Glucagon-like peptide 1 (7-36) amide (GLP-1) and exendin-4 stimulate serotonin release in rat hypothalamus | 下載 |
10.1136/gut.2008.150870 | Exendin-4, a glucagon-like peptide 1 receptor agonist, protects cholangiocytes from apoptosis | 下載 |
10.2337/db08-0799 | Exendin-4 improves glycemic control, ameliorates brain and pancreatic pathologies, and extends survival in a mouse model of Huntington's disease | 下載 |
10.1677/JOE-08-0507 | Exendin-4 inhibits interleukin-1beta-induced iNOS expression at the protein level, but not at the transcriptional and posttranscriptional levels, in RINm5F beta-cells | 下載 |
10.1113/jphysiol.2009.175067 | Vagally mediated effects of glucagon-like peptide 1: in vitro and in vivo gastric actions | 下載 |
10.2337/db09-0104 | Expression of the NH(2)-terminal fragment of RasGAP in pancreatic beta-cells increases their resistance to stresses and protects mice from diabetes | 下載 |
10.1152/ajprenal.00082.2009 | Regulation of Na+/H+ exchanger NHE3 by glucagon-like peptide 1 receptor agonist exendin-4 in renal proximal tubule cells | 下載 |
10.1007/s00125-009-1611-5 | The glucagon-like peptide 1 receptor is essential for postprandial lipoprotein synthesis and secretion in hamsters and mice | 下載 |
10.1210/en.2009-1272 | Glucagon-like Peptide-1 receptor agonists activate rodent thyroid C-cells causing calcitonin release and C-cell proliferation | 下載 |
10.1152/ajpregu.00275.2010 | Dose combinations of exendin-4 and salmon calcitonin produce additive and synergistic reductions in food intake in nonhuman primates | 下載 |
10.4155/bio.10.108 | Application of DBS for quantitative assessment of the peptide Exendin-4; comparison of plasma and DBS method by UHPLC-MS/MS | 下載 |
10.1007/s00125-010-2028-x | Glucagon-like peptide-1 receptor agonist ameliorates renal injury through its anti-inflammatory action without lowering blood glucose level in a rat model of type 1 diabetes | 下載 |
10.1038/ijo.2011.126 | Exogenous peptide YY3-36 and Exendin-4 further decrease food intake, whereas octreotide increases food intake in rats after Roux-en-Y gastric bypass | 下載 |
10.1111/j.1432-2277.2011.01332.x | Stimulating beta cell replication and improving islet graft function by GPR119 agonists | 下載 |
10.1038/ijo.2012.16 | Additive feeding inhibitory and aversive effects of naltrexone and exendin-4 combinations | 下載 |
10.1007/s12035-012-8239-z | Glucagon-like peptide 1 (GLP-1) can reverse AMP-activated protein kinase (AMPK) and S6 kinase (P70S6K) activities induced by fluctuations in glucose levels in hypothalamic areas involved in feeding behaviour | 下載 |
10.1172/JCI57256 | An anti-diabetes agent protects the mouse brain from defective insulin signaling caused by Alzheimer's disease- associated Aβ oligomers | 下載 |
10.1016/j.regpep.2012.06.007 | Postconditioning with curaglutide, a novel GLP-1 analog, protects against heart ischemia-reperfusion injury in an isolated rat heart | 下載 |
10.1074/jbc.M112.387316 | Euglycemic agent-mediated hypothalamic transcriptomic manipulation in the N171-82Q model of Huntington disease is related to their physiological efficacy | 下載 |
10.1016/j.cmet.2012.07.001 | Dual role of VAMP8 in regulating insulin exocytosis and islet β cell growth | 下載 |
10.1016/j.metabol.2012.07.005 | Induction of apolipoprotein A-I gene expression by glucagon-like peptide-1 and exendin-4 in hepatocytes but not intestinal cells | 下載 |
10.1371/journal.pone.0056553 | Neonatal exendin-4 reduces growth, fat deposition and glucose tolerance during treatment in the intrauterine growth-restricted lamb | 下載 |
10.1172/JCI68295 | Exenatide and the treatment of patients with Parkinson's disease | 下載 |
10.1371/journal.pone.0074033 | The expression of the beta cell-derived autoimmune ligand for the killer receptor nkp46 is attenuated in type 2 diabetes | 下載 |
10.1007/s12035-013-8630-4 | PAS kinase is a nutrient and energy sensor in hypothalamic areas required for the normal function of AMPK and mTOR/S6K1 | 下載 |
10.1111/bph.12498 | Characterization of the heterozygous glucokinase knockout mouse as a translational disease model for glucose control in type 2 diabetes | 下載 |
10.1016/j.molmet.2014.09.005 | GLP-1 receptor agonism ameliorates hepatic VLDL overproduction and de novo lipogenesis in insulin resistance | 下載 |
10.1016/j.molmet.2015.01.003 | Clic4, a novel protein that sensitizes β-cells to apoptosis | 下載 |
10.1371/journal.pone.0123443 | Evaluation of ¹¹¹in-labelled exendin-4 derivatives containing different meprin β-specific cleavable linkers | 下載 |
10.1007/s00125-015-3727-0 | Central GLP-1 receptor signalling accelerates plasma clearance of triacylglycerol and glucose by activating brown adipose tissue in mice | 下載 |
10.1371/journal.pone.0142314 | CCK Response Deficiency in Synphilin-1 Transgenic Mice | 下載 |
10.1038/cddis.2015.399 | Inhibition of the MAP3 kinase Tpl2 protects rodent and human β-cells from apoptosis and dysfunction induced by cytokines and enhances anti-inflammatory actions of exendin-4 | 下載 |
10.1016/0196-9781(94)90204-6 | Stable expression of the rat GLP-I receptor in CHO cells: activation and binding characteristics utilizing GLP-I(7-36)-amide, oxyntomodulin, exendin-4, and exendin(9-39) | 下載 |
10.2337/diabetes.51.5.1443 | Persistent improvement of type 2 diabetes in the Goto-Kakizaki rat model by expansion of the beta-cell mass during the prediabetic period with glucagon-like peptide-1 or exendin-4 | 下載 |
10.1677/joe.1.06723 | cAMP-mediated signaling normalizes glucose-stimulated insulin secretion in uncoupling protein-2 overexpressing beta-cells | 下載 |
10.1111/j.1463-1326.2009.01066.x | Long-term exendin-4 treatment delays natural deterioration of glycaemic control in diabetic Goto-Kakizaki rats | 下載 |
10.1002/jcp.22243 | Presence of a functional receptor for GLP-1 in osteoblastic cells, independent of the cAMP-linked GLP-1 receptor | 下載 |
10.1016/j.bone.2015.08.006 | Chronic administration of Glucagon-like peptide-1 receptor agonists improves trabecular bone mass and architecture in ovariectomised mice | 下載 |
10.1371/journal.pone.0147254 | Identification of Human Islet Amyloid Polypeptide as a BACE2 Substrate | 下載 |
10.1016/j.molmet.2016.04.008 | Limiting glucocorticoid secretion increases the anorexigenic property of Exendin-4 | 下載 |

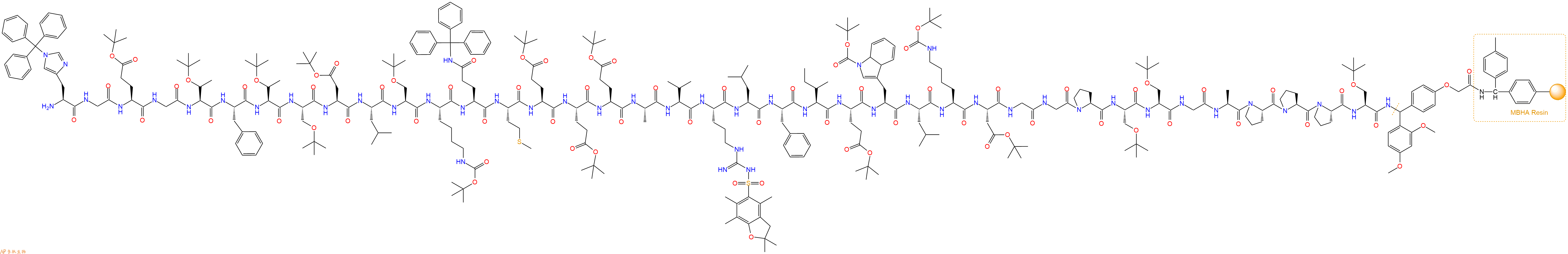

多肽H2N-His-Gly-Glu-Gly-Thr-Phe-Thr-Ser-Asp-Leu-Ser-Lys-Gln-Met-Glu-Glu-Glu-Ala-Val-Arg-Leu-Phe-Ile-Glu-Trp-Leu-Lys-Asp-Gly-Gly-Pro-Ser-Ser-Gly-Ala-Pro-Pro-Pro-Ser-NH2的合成步驟:

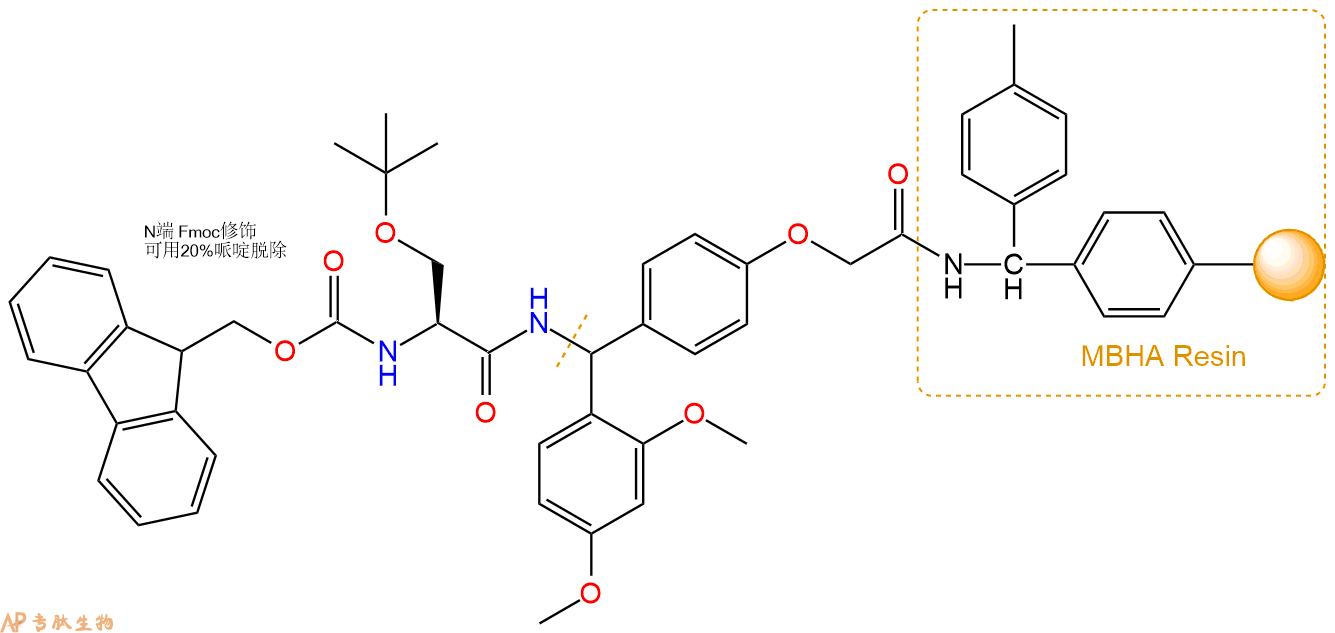

1、合成MBHA樹脂:取若干克的MBHA樹脂(如初始取代度為0.5mmol/g)和1倍樹脂摩爾量的Fmoc-Linker-OH加入到反應器中,加入DMF,攪拌使氨基酸完全溶解。再加入樹脂2倍量的DIEPA,攪拌混合均勻。再加入樹脂0.95倍量的HBTU,攪拌混合均勻。反應3-4小時后,用DMF洗滌3次。用2倍樹脂體積的10%乙酸酐/DMF 進行封端30分鐘。然后再用DMF洗滌3次,甲醇洗滌2次,DCM洗滌2次,再用甲醇洗滌2次。真空干燥12小時以上,得到干燥的樹脂{Fmoc-Linker-MHBA Resin},測定取代度。這里測得取代度為 0.3mmol/g。結構如下圖:
2、脫Fmoc:取2.04g的上述樹脂,用DCM或DMF溶脹20分鐘。用DMF洗滌2遍。加3倍樹脂體積的20%Pip/DMF溶液,鼓氮?dú)?0分鐘,然后2倍樹脂體積的DMF 洗滌5次。得到 H2N-Linker-MBHA Resin 。(此步驟脫除Fmoc基團,茚三酮檢測為藍色,Pip為哌啶)。結構圖如下:
3、縮合:取1.84mmol Fmoc-Ser(tBu)-OH 氨基酸,加入到上述樹脂里,加適當DMF溶解氨基酸,再依次加入3.67mmol DIPEA,1.74mmol HBTU。反應30分鐘后,取小樣洗滌,茚三酮檢測為無色。用2倍樹脂體積的DMF 洗滌3次樹脂。(洗滌樹脂,去掉殘留溶劑,為下一步反應做準備)。得到Fmoc-Ser(tBu)-Linker-MBHA Resin。氨基酸:DIPEA:HBTU:樹脂=3:6:2.85:1(摩爾比)。結構圖如下:
4、依次循環步驟二、步驟三,依次得到
H2N-Ser(tBu)-Linker-MBHA Resin
Fmoc-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
H2N-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
Fmoc-His(Trt)-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin
以上中間結構,均可在專肽生物多肽計算器-多肽結構計算器中,一鍵畫出。
最后再經過步驟二得到 H2N-His(Trt)-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Leu-Ser(tBu)-Lys(Boc)-Gln(Trt)-Met-Glu(OtBu)-Glu(OtBu)-Glu(OtBu)-Ala-Val-Arg(Pbf)-Leu-Phe-Ile-Glu(OtBu)-Trp(Boc)-Leu-Lys(Boc)-Asp(OtBu)-Gly-Gly-Pro-Ser(tBu)-Ser(tBu)-Gly-Ala-Pro-Pro-Pro-Ser(tBu)-Linker-MBHA Resin,結構如下:
5、切割:6倍樹脂體積的切割液(或每1g樹脂加8ml左右的切割液),搖床搖晃 2小時,過濾掉樹脂,用冰無水乙醚沉淀濾液,并用冰無水乙醚洗滌沉淀物3次,最后將沉淀物放真空干燥釜中,常溫干燥24小試,得到粗品H2N-His-Gly-Glu-Gly-Thr-Phe-Thr-Ser-Asp-Leu-Ser-Lys-Gln-Met-Glu-Glu-Glu-Ala-Val-Arg-Leu-Phe-Ile-Glu-Trp-Leu-Lys-Asp-Gly-Gly-Pro-Ser-Ser-Gly-Ala-Pro-Pro-Pro-Ser-NH2。結構圖見產品結構圖。
切割液選擇:1)TFA:H2O=95%:5%
2)TFA:H2O:TIS=95%:2.5%:2.5%
3)三氟乙酸:茴香硫醚:1,2-乙二硫醇:苯酚:水=87.5%:5%:2.5%:2.5%:2.5%
(前兩種適合沒有容易氧化的氨基酸,例如Trp、Cys、Met。第三種適合幾乎所有的序列。)
6、純化凍干:使用液相色譜純化,收集目標峰液體,進行凍干,獲得蓬松的粉末狀固體多肽。不過這時要取小樣復測下純度 是否目標純度。
7、最后總結:
